Automatic Seaweed Cutting&Arranging Packing System
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
Information
Technical parameters:
| Machine name | Automatic cutting&arranging packing system |
| Application | for seaweed and seaweed sandwich cutting and packing |
| Length | 4100mm(excluding packing machine or the horizontal stacking and sending device) |
| Width | 1830mm |
| Height | 1000mm |
| Packing speed | 30-150bags/min(varified according to cutting types) |
| Primary cut specs | 210*190*10(can be customized) |

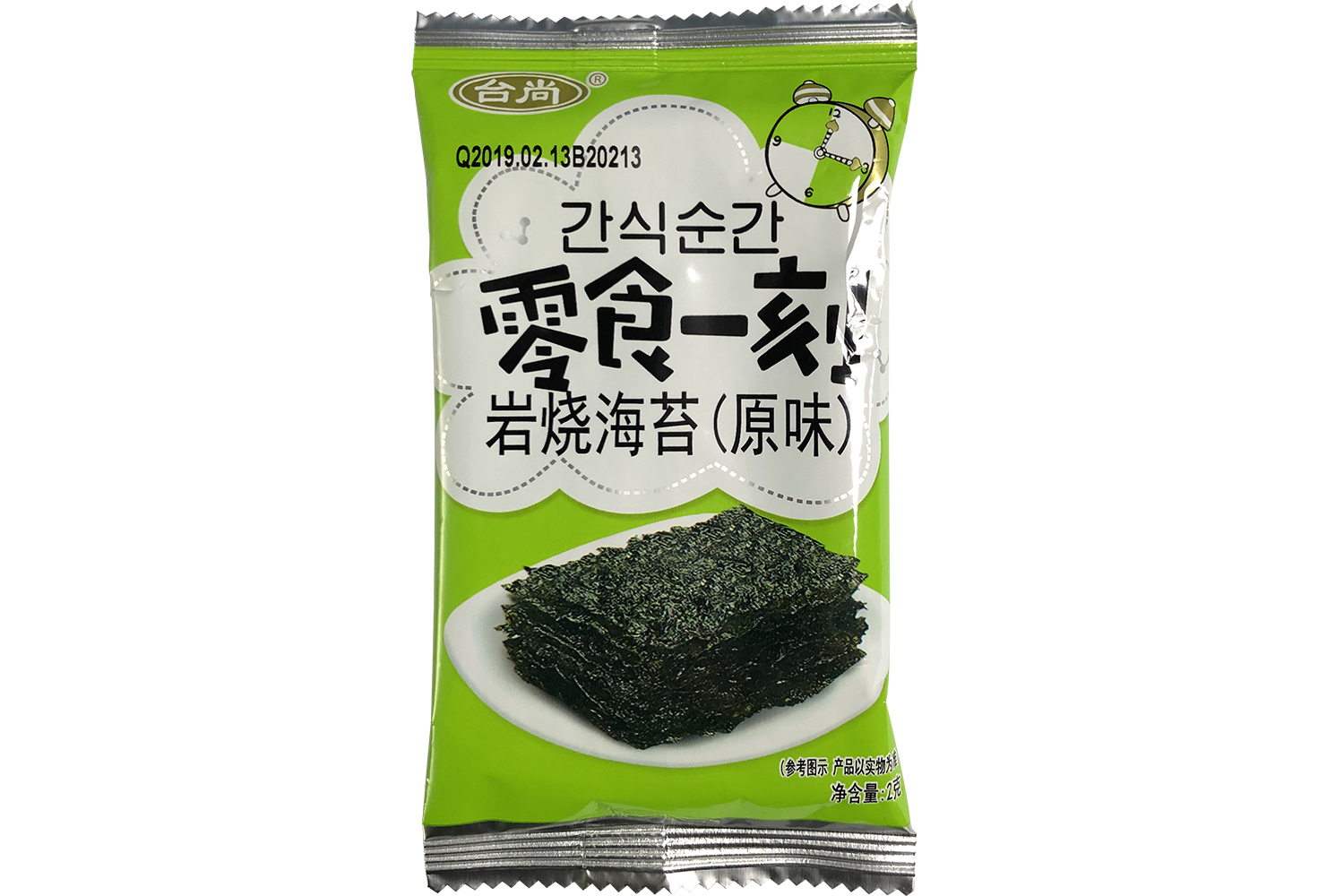

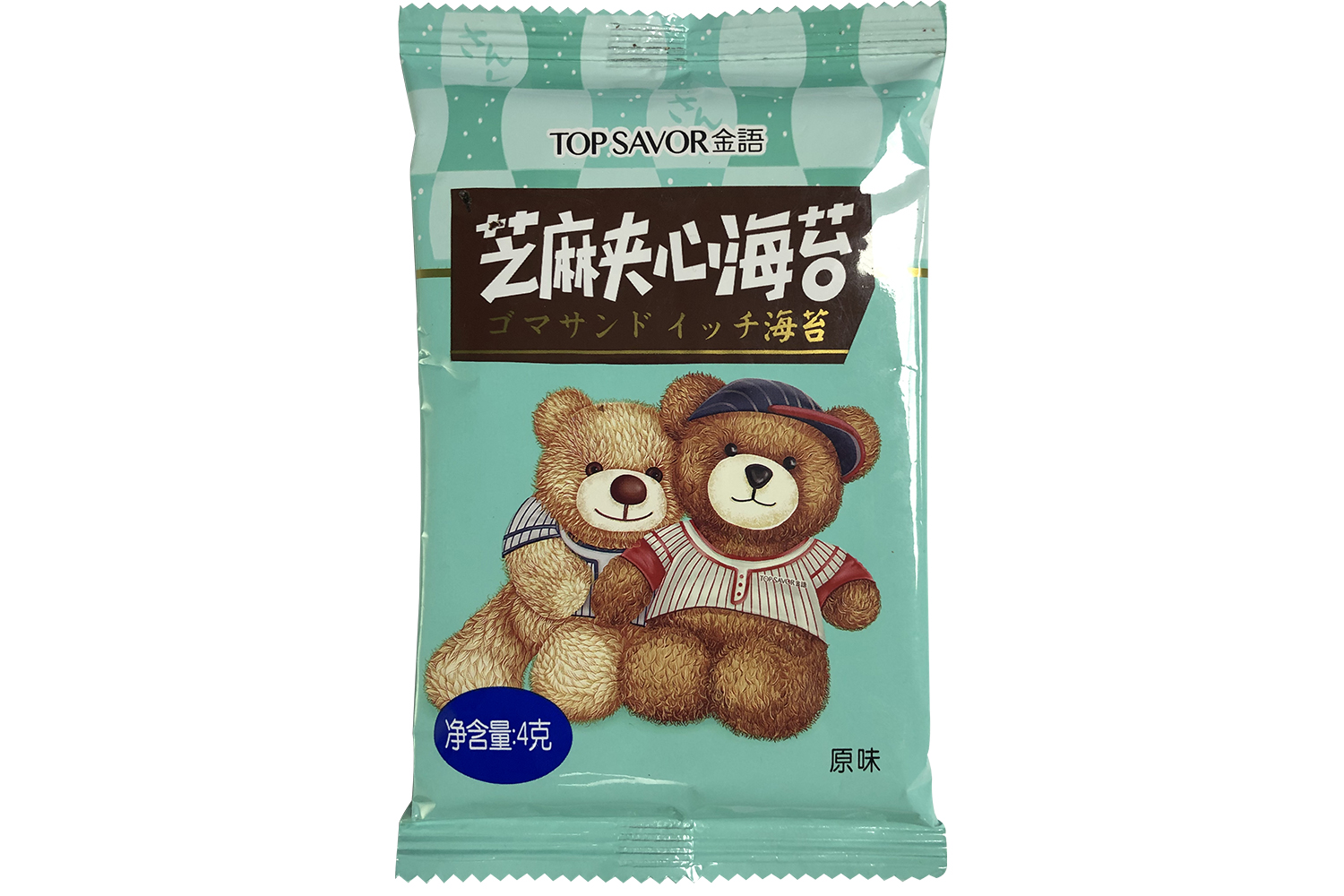

| Finished product specs | 6, 8, 9,12cuts(can be customized) |
| Tray specs | 130*130*40(can be customized) |
| Air pressure | 0.6-0.8Mpa, 0.5m3/min |
| Power type | 220V, 50Hz |
| Total power rate | 1.6kw |
| Machine weight | 850kg(excluding the packing machine) |
Machine characteristics:
The whole machine is SUS304, tight structure, compact size,easy maintenance, can be connected with different type packing machines, easy to expend;
Colorful display screen, servo control, easy operation, high accuracy;
It can be applied with auto tray open device, and tray loading device to realize the product automatic cutting and packing.
It also can be applied with stacking device to realize the multi-layers packing.

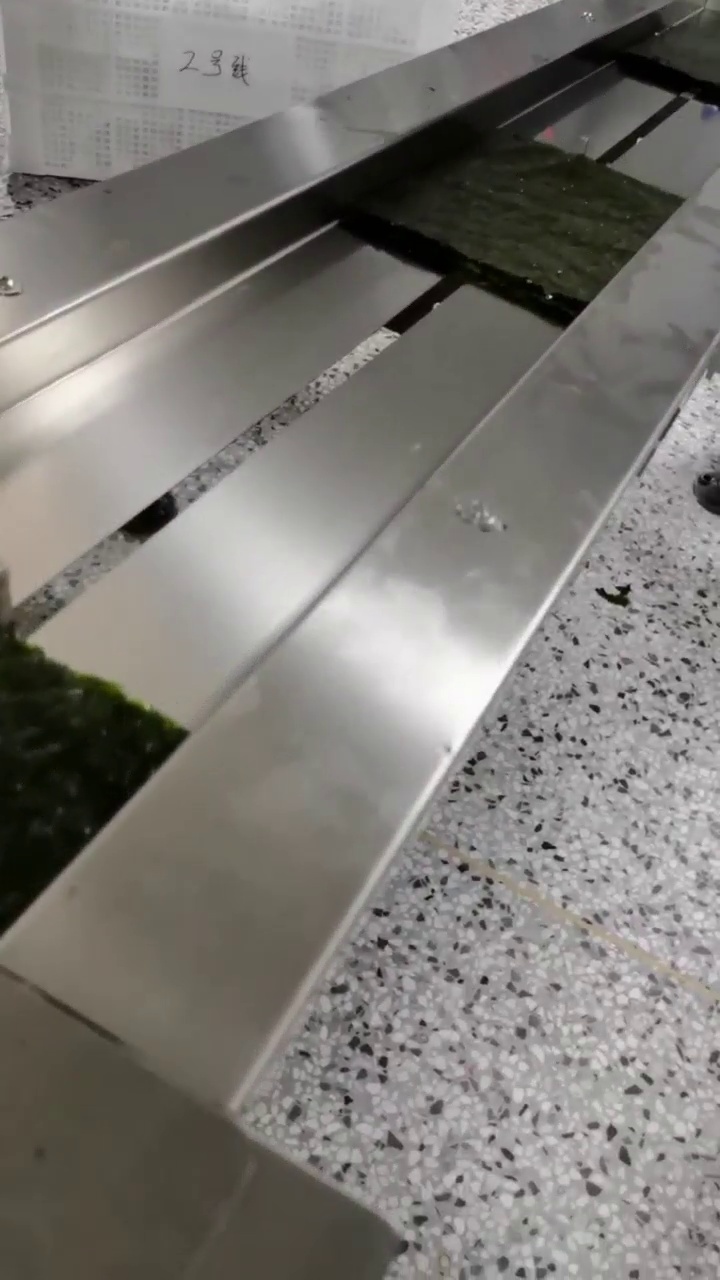

Video
