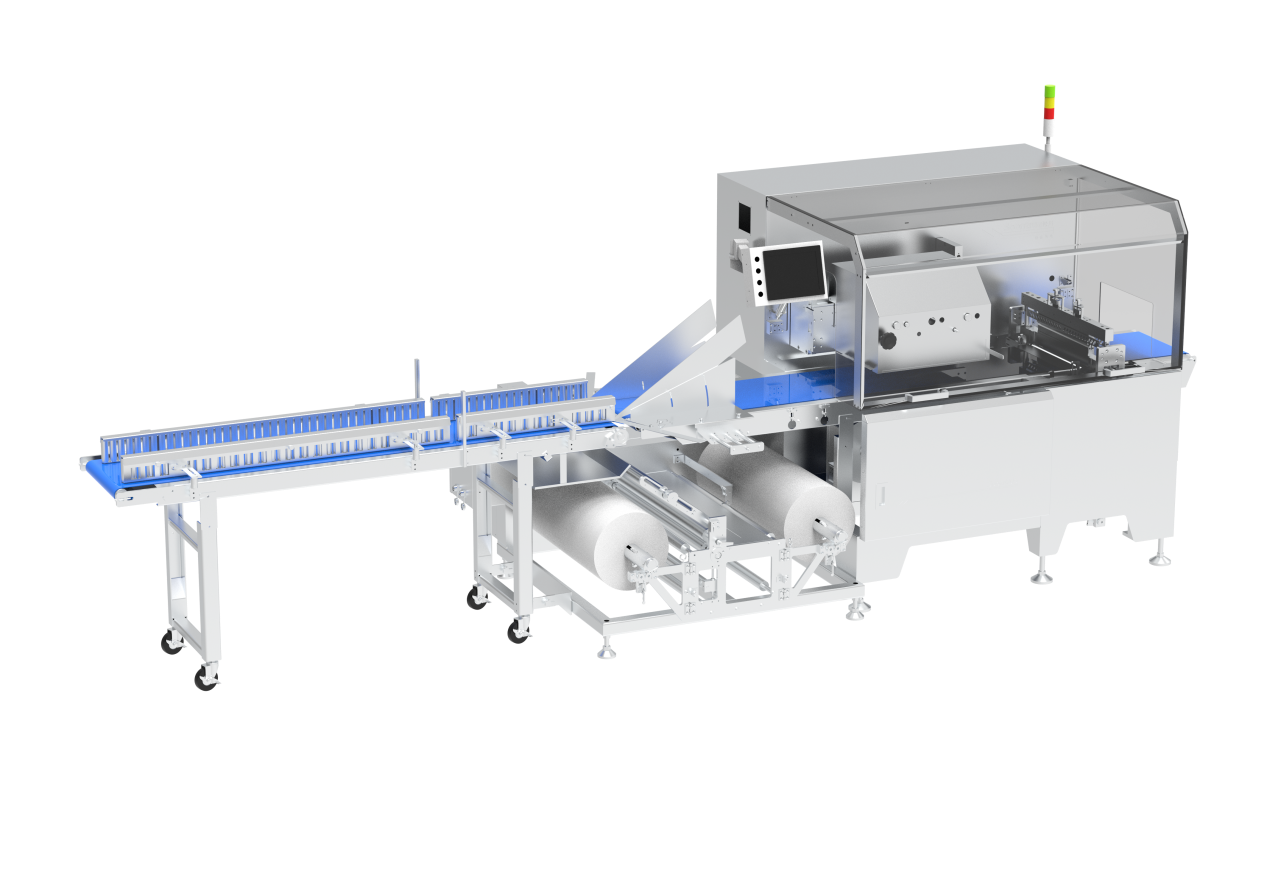

SZ901 Fresh meat big size packing machine
Wide application, High speed and accuracy, easy operation, easy for maintenance.
|
Specs |
SZ901 |
|
|
Center distance(mm) |
250 |
|
|
Packing speed(mm/seconds) |
200 |
|
|
Packing film max width(mm) |
900 |
|
|
Packing parameter(mm) |
Bag length |
150-600 |
|
Bag width |
280-350 |
|
|
Bag height |
70-230 |
|
|
Total power(kw) |
12 |
|
|
Main motor power(KW) |
0.75*4、0.4*8 |
|
|
Machine net weight(Kg) |
1625 |
|
|
Machine noise(dB) |
≤78 |
|
|
Sealing pressure(N/mm2) |
6 |
|
|
Machine out dimension(L*W*H)(mm) |
5133x1708x1698 |
|
|
Power supply |
220V 50HZ |
|
|
Packing film material |
OPP、PVC、OPP/CPP、PT/PE、KOP/CPP etc |
|
1.The machine consists of 12 servos, mechanical parts are very few, to low the mechanical problems, for easy operation and low noise.
2.The design of the reciprocating horizontal sealing knife seat, with dual servo control, features an elegant appearance and good sealing performance.
3.The longitudinal sealing is independently servo-controlled and can open and close automatically.
4.The quick film hanging roller can be automatically calibrated and centered.
5.The packaging range of the whole machine is extremely large, suitable for packaging all kinds of large-specification and large-size products.
6.It is equipped with a ten-inch color human-machine interface that can rotate 360 degrees.
7.Multiple product parameters can be stored to achieve rapid switching of product specifications.
8.Film break detection, photoelectric detection, and automatic tracking to adjust the bag length without the need for manual settings.
9.The whole machine has higher precision, and the sealing and cutting positions are accurate.
10.The stop position and coding position can be arbitrarily set on the touch screen with just a click, which is convenient and fast. The parts of the whole machine are treated with stainless steel/QPQ, and the whole machine can meet the IP65 waterproof and dust-proof standards.
11.There is dust film collecting device on the machine.
